Please follow these instructions when assembling your Ultimate Reloading Press Mount.

You need 6mm bolts (length dependent on your bench.) to secure your mount to your work bench, a 10mm spanner and a 5mm hex key.

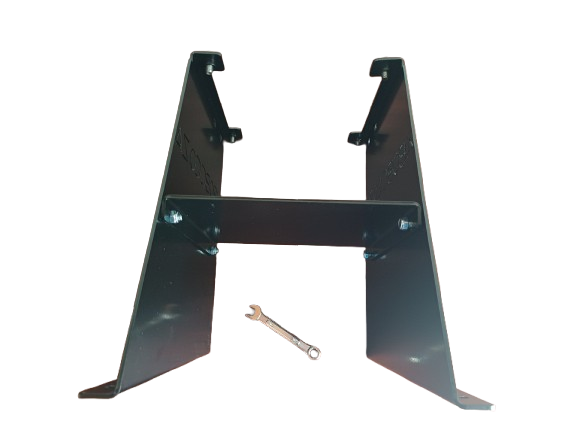

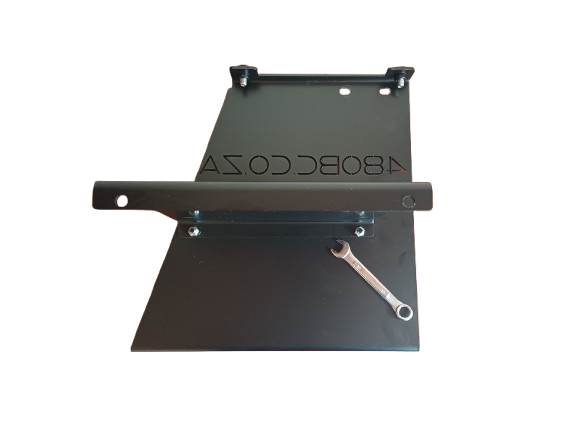

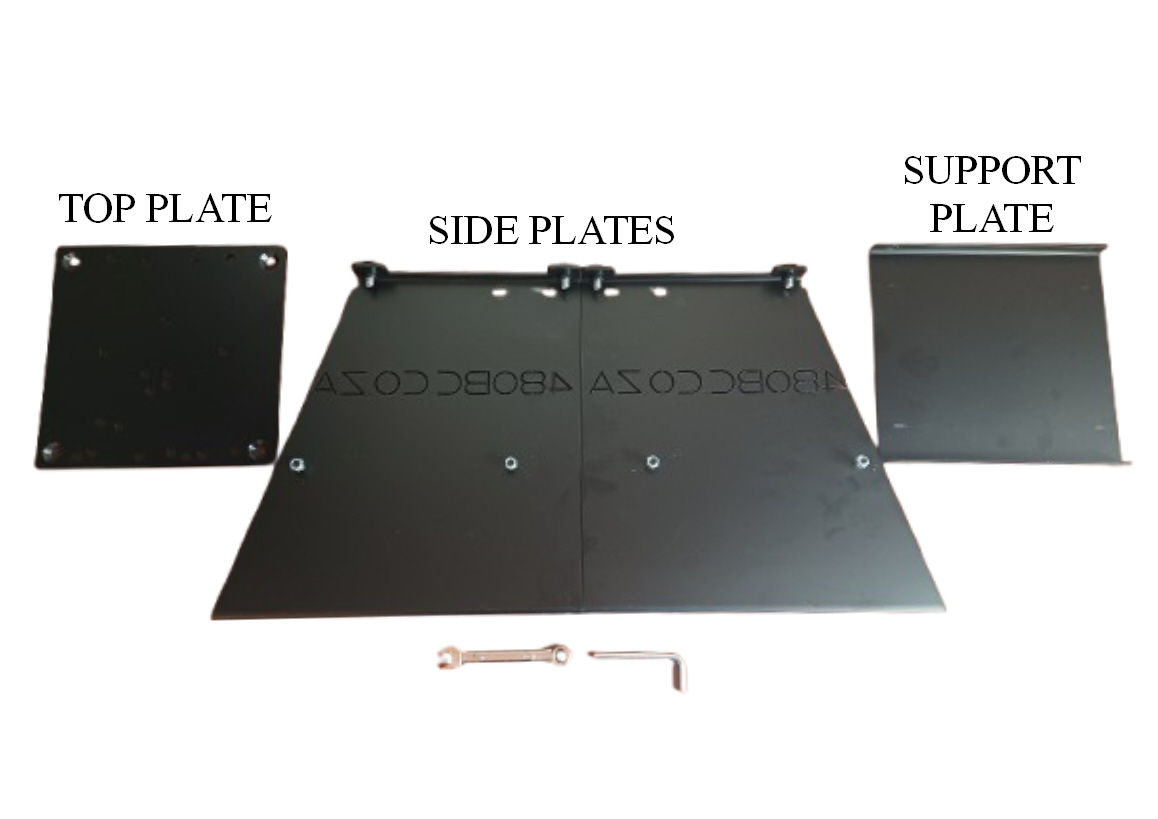

Attach Support Plate to the Side Plates using the included 10mm nuts as shown. Be careful not to cross thread.

Install top plate to mount and secure with included counter sunk hex bolts using a 5mm hex key. One end has mounting holes predrilled for Lee Precision Reloading Presses and the other end is predrilled for Dillon Presses. Install appropriate top plate only for now.

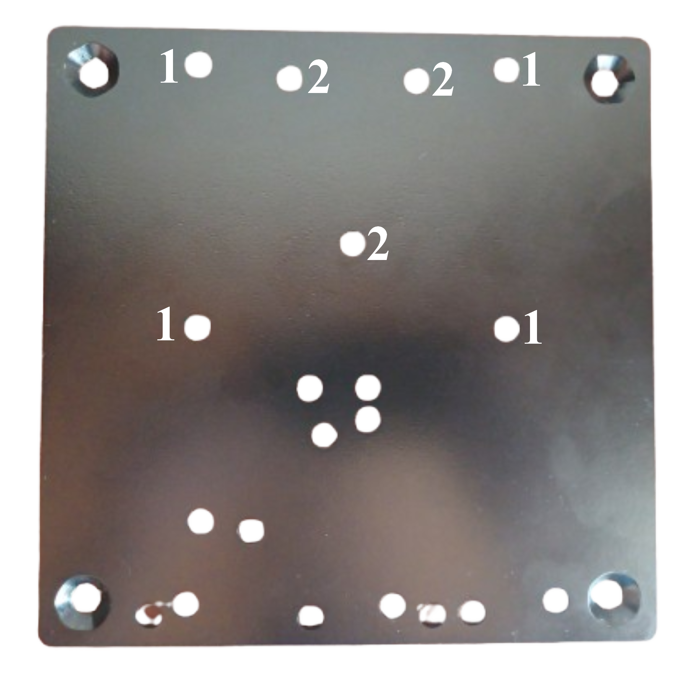

1. Dillon XL650/XL750/RL550

2. Dillon Square Deal B

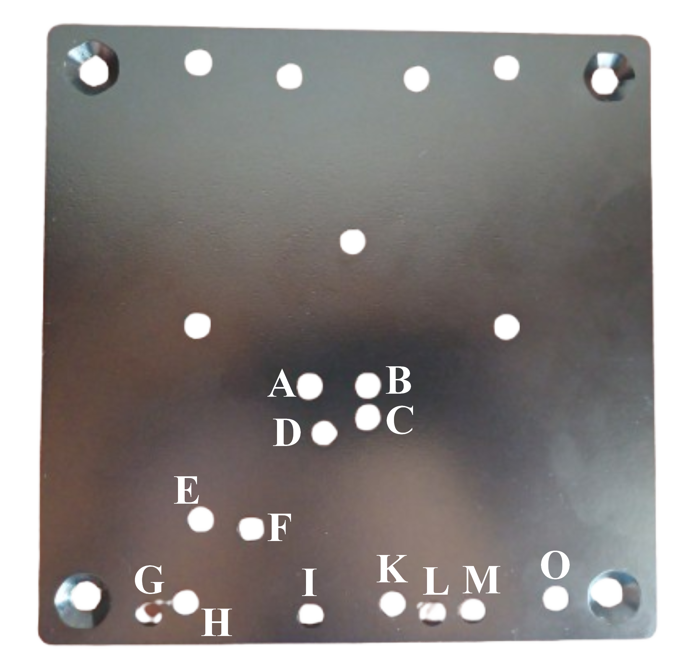

Six Pack Pro, Ultimate Turret Press – D, H, O

Pro 1000, Pro 4000, Value Turret – D, H, M

APP, Reloader Press – C, I, L

Load Master, Red Base Pro1000 – A, G, M

Classic Turret – B, H, O

Classic Cast – A, G, M

Challenger – D, F, I

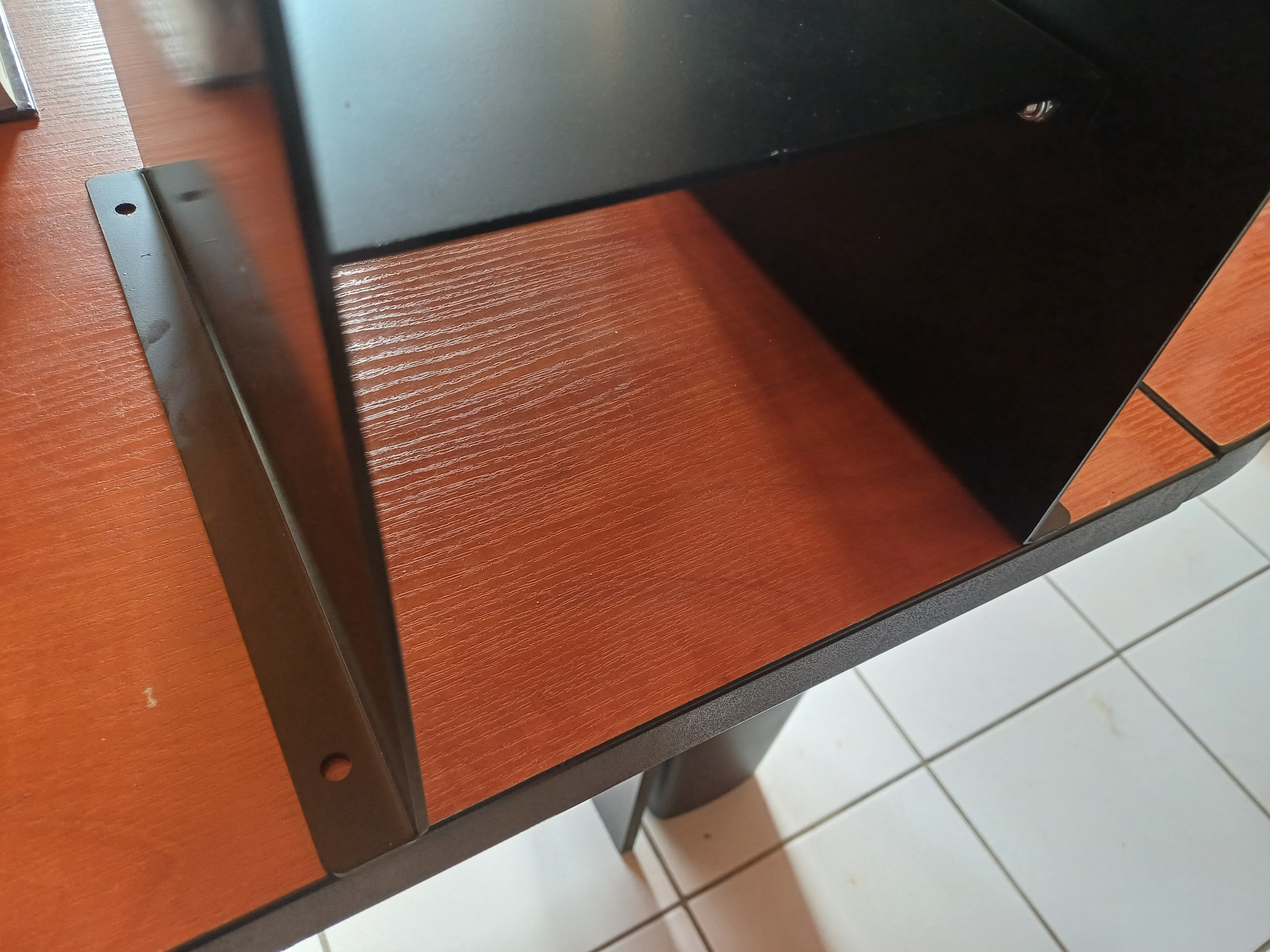

Secure your Ultimate Reloading Press Mount to the front edge of your work bench with 6mm bolts (Not included as each bench will be different, use washers for additional strength). Now you can mount your press with the supplies hex bolts, washers.
